• so hex digits go from zero to f so we're letters take over from 10 is a, b is 1112 is C 13 is D, 14 is E and 15 is F so that all familiar.
• So
• I thought this is an opportunity for me to show you a magic trick they were like magic tricks. Okay, so I like a volunteer and I'd like you to pick a number between zero and 15 Don't tell me keep it to yourself. I'm going to ask you four questions and based on your answers I'm going to psychically sense your answer and give you give you the number you've guessed you've selected
• Okay, who's the volunteer? Okay. Shoe. Yep, that's how I know but you're fine there.
• I just wanted to know that. I can think of today's announcement a profit. Okay, do your thinking you have a number. Okay, so
• number on this card
• is remember on this card? Yes.
• So that's what the card looks like.
• This is the first card I showed
• on this card I guess
• finds your number in this card
• sensing psychic energy
• number seven yes
• anyone familiar with this magic trick
• okay to have another volunteer All right
• yes
• okay is your number on this card
• is your number on this card
• number in this card
• is your number on this card
• blocking
• numbers for that is correct
• okay so Are you sure you're Dr Hepting and not talk to Houdini
• Yeah well I'm not very good at escaping
• anyway let's so let's any ideas about how this is working who believes that I'm using my ESP my my magician's abilities to guess your numbers that's good that nobody thinks magical abilities.

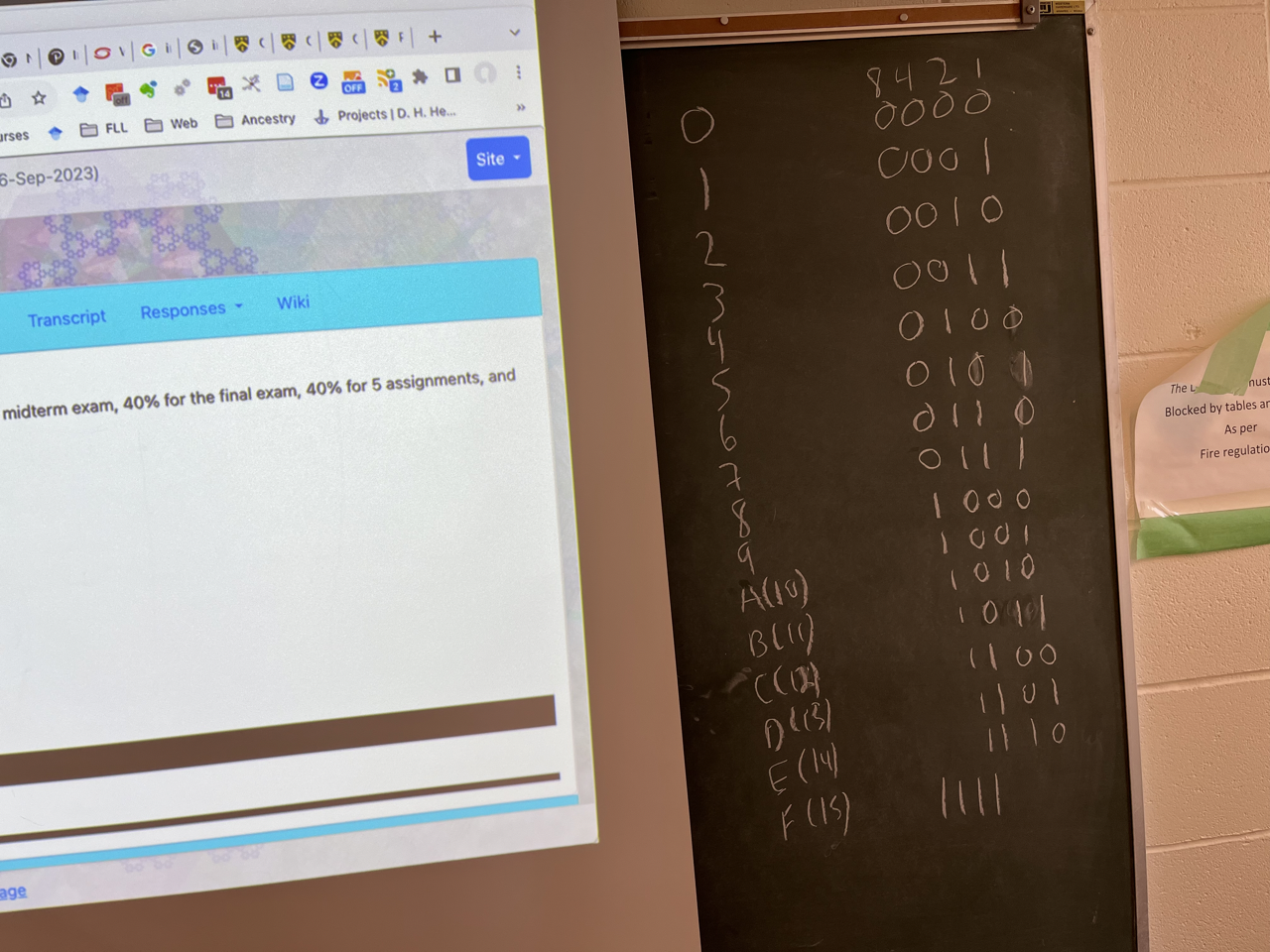

• Okay, so we're gonna pick a number between zero and 15. So what do we notice about the numbers that I asked you to pick from? As we go into 115 Yeah, okay
• this is another way to save zero and 15 right
• so it's like
• a VG two quickly here
• Okay, so, here we talked about four
• bits
• and does the number four come up anywhere in that trick?
• Just once
• in your in your guests it did. But is there more generally in this? How many cards do I have?
• So let's write out our hex digits here.
• Zero is if you
• write his four bits it's four zeros
• and ones 15 At
• the other end
• let's see right so it's all once
• they were no
• joke about how there's 10 kinds of people in the world
• those who understand binary and those who don't
• right so that's number two in binary.
• Mr again, it's 1112
• think those match up all right so what's the other connection between that table? You can Oh, you don't need to correct me. You get the idea, right.
• What's the connection between ones and zeros? And what I was asking you to do?
• I asked you for a yes or no answer right
• yes
• so in what I was asking you is tell me your number think of your number in decimal and then I'm asking you for questions which you're encoding you're telling me the number in binary
• so when
• so the numbers here on the one card the first card are all the ones that have the Lord or bitset and so that happens to be eight of them and they fit nicely on a card like this and then the two card has ones that are next position value of two four card has that and the eighth card has just one starting at eight to 15 So if we say no to all the cards all right guess is zero. So now our algorithm
• to do this is
• start with you start with set your guests to zero keep track of the yeses and add them to your guests. So if you guess number seven or if if the participant said no number seven, don't say yes to the one two and four cards, no to the eight card so one plus two plus four is seven and I'm not gonna get in trouble with any magicians union for time that story. So that makes sense. So this is a way we can think of
• we can encode values with bits so we can encode 16 values with four bits, we can encode 256 values with eight bits and as we talked about last day, so two hex digits 256 values that's a common way to represent values for the different color channels. We'll talk about color in computer graphics so
• okay then
• don't know if I should try and do this again see.
• So here's a car asking me about my computer graphics work so I
• this is on my website, a collection of images
• and some other things I've done related to fractals.
• I was going to add a link to a newer thing that I did last year. Video
• For our next meeting
• so I'm
• a president I'm interested in, right, you can look at the collection of my publications if you'd like
• me to do some
• updating on that material on the website but useful open data, so linked open data and other kinds of other forms of open data.
• We can make them more accessible and usable for people, for citizens to contribute and to use them. Anyway, so here's the countable course structure.
• So I will post the official syllabus today. My technical difficulties got in the way of fulfilling that. I said I was gonna have it done today, before class, but I'll get to you today.
• So here's the textbook link.
• So that's the pure publishers website, the Canadian website for accessing. So if you there might be earlier versions available. So it's, it's a reference for you. It's not required. And here's the website to support
• a textbook. So we'll be looking
• at examples from there. So a question. Oh, great distribution. So we talked about this last day. So 10% for the midterm 40% For the final 40% for five assignments and 10% for participation. There's a common WebGL versus OpenGL.
• So we have GL is
• a Javis is a web implementation of OpenGL embedded 2.0 for embedded systems. So there are a few differences
• so I guess the next thing, and I'm not sure what is coming along is sort of WebGL that might be web GPU. Because the code we'll be writing this time talks about is making use of the GPU
• Anyway, okay, so I'll be doing was getting three Gs installed and
• anyone try that out?
• Right, yeah. Okay. All right. So we'll talk about that again on Monday.
• Go through so.
• We'll go through that example and some WebGL code
• combination sound
• fun and quantization
• sorry
• so this is the audience participation part and ask a question you can feel free to answer or ask another question
• okay let me talk some more than
• for all I need to be writing bigger way back in the back back I'll try and submit I need a
• truck in the truck
• so what are creating an image
• on the screen so
• so if it's on the screen we have a final resolution so maybe it's 4k so
• it's
• I'm not sure what the resolution of my screen is here anyway
• so when we're talking about what makes up
• an image
• is there a word that comes to mind that you're familiar with?
• Okay so what is a pixel
• so
• it's a physical convener which contains all three goals or GDP
• the starting point for our discussion
• we're not actually
• it's not a single
• let's see if we can zoom in here
• now this isn't
• anyway so they did let me try this me get back to our basic resolution
• not sure what I'm missing here
• there we go
• sooner zooming in
• it's difficult to see here but the idea is it's it's not a single location on screen that has contains the red green and blue red green and blue are separate but they're in close proximity so the impression is that we get the color
• ID each pixel has
• so you can see each
• pixel has a value associated with it
• how do you associate a value with excellent?
• Something else is as quick as a pixel a square or a rectangle
• does it have some
• built in geometry that we're when you zoom into it like this does make squishes maybe So it's not inherently a square so if you want things to look nice on the screen
• we'll make them square
• do much better with a whiteboard and a marker console I'll have to recalibrate my writing a little bit I think so when you have issues reading when I'm scribbling on the board please let me know
• so
• 1416 by
• nine so that's
• it more traditional earlier displays were
• forced by free
• read a square one to one
• does anyone seen bad websites where pictures of people are stretched and contorted and imagined so happens too often so not keeping an eye preserving the aspect ratio of the image
• so it's better to think of pixels as samples of this continuous phenomenon that we're trying to represent attorney discretize
• see some
• smiles are you laughing with me or
• anyway
• so the pixel is a sample
• so since we have
• a zoomed in image here that's
• so you can see it's not
• displaying text or not just
• producing the outline
• so, there are some pieces that are darker than we were also
• let's start here.
• So that's,
• that's the center so the way to interpret this
• So you can please forgive my knots square drying here
• with so this so we're taking a sample of a dot here so it translates into
• so
• this one in the middle gets full value because it's
• it's fully covered by the by the auditor sampling
• and then the other ones get less than
• two the reason why it's spread out like this
• okay one minute left. So, anti aliasing
• never understood what it means.
• Okay, so
• Zaven heard the Nyquist Shannon, or Shannon Nyquist.
• So the idea is if you want to reconstruct a continuous signal, you need to sample it twice the highest frequency
• so
• when we're doing pixels we want to make sure that
• in this case so what happens if we have an object like that
• like that
• so at first sight if we take a sample from the
• middle of
• the region so if we say
• we're going to treat pixels as squares, and we're going to sample in a grid like this. So, here we can get a set we're gonna hit for this one.
• But we'll miss this one. So this is
• so aliasing because we're not sampling at a high enough rate if you want to want to represent this. We have to make the samples close enough together to catch that. Thank you A mesh screen that we're trying to if you want to catch for panning for gold
• or something valuable
• we have segments and sad I want to make use a screen that's bigger than a piece of and we're looking for it to be on the safe side you want to make it twice as fine as the thing we're looking for
• so you may have heard about this
• in terms of audio
• CD is sampled at 44.1 kilohertz and that's because
• most people can hear up to 22 kilohertz so sampling at twice the rate that makes sense okay, so thank you for your attention today we'll try and
• pick things up just trying
• so please
• look at three Jas get that started and then we'll look at some look at the interactive website
• Thank you for today
• have a good weekend thanks.
• Says but there might be somebody who computer science officer if you're interested in
• getting the stem
• myself
• okay, you're clear you're free to
• okay, you're clear you're free to

Responses

What important concept or perspective did you encounter today?

• I learned pixels, they are defined as physical containers with RGB components. i also learned about the anti aliasing very easily.
• I learned about the Pixels and Sampling and anti-aliasing more clearly, pixels are samples of a continuous phenomenon
• How aliasing is is the effect that creates jagged lines in images and how it can be mitigated using the sampling at a frequency higher than the Nyquist Sampling Frequency
• During today's meeting, I discovered that the binary guessing game was quite intriguing. I made an attempt to reproduce and resolve the problem mentioned in the following Stack Overflow post: https://stackoverflow.com/questions/77047179/build-failed-macos-12-6-8-using-ruby-build-20230904-rbenv-install-3-1-2. Regrettably, I was unable to find a solution.

Was there anything today about which you would like to know more?

• First of all, the magic which professor displayed in the class was very interesting. Now I'll be befooling my sister with this trick. Secondly, I heard the term WebGL from professor. I am keen to deep dive about this in the times to come.
• In today's graphics class, we explored pixels – the tiny containers of RGB color and how they shape our on-screen images.
